High pivot

High pivot

  • High pivot

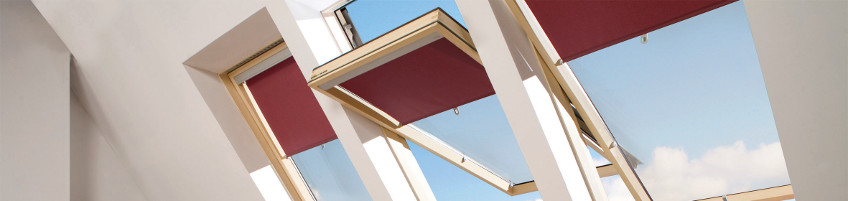

    The centre pivot window, but its axis of rotation is situated above the centre of the window so even a tall person can easily walk up to the window edge. The lower part of the sash fulfils a top hung window function and the upper part of the sash is an additional source of daylight. The sash when opened in position from 0 to 45 degrees is supported by innovative supporting mechanism enabling the sash to be open in any position within this range.

  • The window when installed in roofs with pitches 39-43 degrees will satisfy the requirements of DIN 5034-1 standard*, according to which the bottom window edge has to be situated 95cm above the floor level and the top minimum 220cm.
    The window is operated by the use of handle located at the bottom of the sash. The handle is equipped with a two-step micro opening mechanism.
    Automatic air inlet V40P.

  • Standard equipped with energy efficient glazing unit U3.
    The highest quality pine wood, glued in layers, vacuum impregnated.
    Double coated wood with ecological acrylic lacquer in natural colour.
    Sash rotated through 160 degrees is locked by the bolt for cleaning.
    Increased resistance to burglary - TopSafe system.
    A wide range of accessories.
    Installation range 20-65 °


Pivot window with Raised Axis of Rotation - FAKRO thermoPro technology as standard

System topSafeTopsafe® system of burglary protection as standard





  • FYP-V proSky


    • Air inlet V40Pautomatic air V40P
    • Glazing unit U3available as standard with energy-saving glazing U3
    • Highest quality pine woodhighest quality pine wood, glued in layers, vacuum impregnated
    • Wood painted twice with ecological acrylic lacquerwood painted twice with ecological acrylic lacquer in natural colour
    • Suitable for pitches from 20-65installation range 20-65 °
    • 1.3 W/m²K window U-value 1.0 W/m²K glazing U-value 32dB acoustic insulation Rw 4H-16-4T glazing unit argon inert gas filled panes + external glass toughened V40P air inlet type twice varnishing four seals + multi-point opening Elegant handle
    • 1.3 W/m²K window U-value 1.0 W/m²K glazing U-value 32dB acoustic insulation Rw 4H-16-4T glazing unit argon inert gas filled panes + external glass toughened V40P air inlet type triple varnishing four seals + multi-point opening Elegant handle
  • PYP-V proSky


    • Air inlet V35efficient air inlet V35
    • Multi chamber white PVC profilemulti-chamber white PVC profile with reinforced steel core
    • Window is durable and resistant to corrosionthe material does not absorb moisture, the window is durable and resistant to corrosion
    • Designed for kitchens and bathroomsDesigned for rooms where elevated humidity level stays for long time (bathrooms, laundry rooms)
    • Suitable for pitches from 20-65Installation in roof pitches from 15 to 90 degrees
    • 1.4 W/m²K window U-value 1.0 W/m²K glazing U-value 31dB acoustic insulation Rw 4H-16-4T glazing unit argon inert gas filled panes + external glass toughened V35 air inlet type twice varnishing four seals + multi-point opening Elegant handle
    • 1.3 W/m²K window U-value 1.0 W/m²K glazing U-value 32dB acoustic insulation Rw 4H-16-4T glazing unit argon inert gas filled panes + external glass toughened V40P air inlet type four seals + multi-point opening Elegant white handle
  • FDY-V Duet proSky


    • Air inlet V40Pautomatic air V40P
    • Glazing unit U3available as standard with energy-saving glazing U3
    • Highest quality pine woodhighest quality pine wood, glued in layers, vacuum impregnated
    • Wood painted twice with ecological acrylic lacquerwood painted twice with ecological acrylic lacquer in natural colour
    • Suitable for pitches from 20-65installation range 20-65 °
    • 1.3 W/m²K window U-value 1.0 W/m²K glazing U-value 32 dB acoustic insulation Rw 4H-16-4T glazing unit argon inert gas filled panes + external glass toughened V40P air inlet type twice varnishing four seals + multi-point opening Elegant handle
    • 1.3 W/m²K window U-value 1.0 W/m²K glazing U-value 32 dB acoustic insulation Rw 4H-16-4T glazing unit argon inert gas filled panes + external glass toughened V40P air inlet type triple varnishing four seals + multi-point opening Elegant handle
