Flat roof window type F

WINDOW STRUCTURE
The type F flat roof window features a sleek modern look, characterised by excellent thermal insulation parameters. The structure of the frame is the same as for flat roof windows with a dome however the main difference lies in the glazing unit which is bonded using modern manufacturing technologies to produce a highly aesthetic and innovative design.


Flat roof window type F

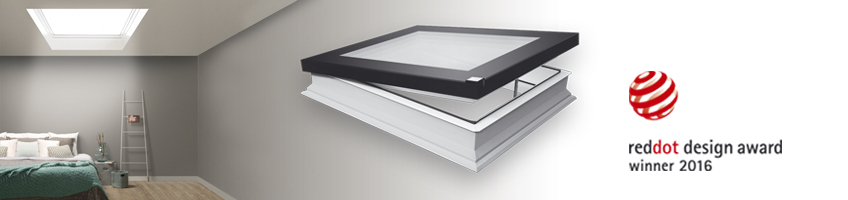

A minimalist and perfect designed DEF flat roof window has been awarded with prestigious Red Dot Design Award.









D_F WINDOW - COLOURLINE VERSION

The innovative flat roof window D_F ColourLine allows you to match the colour of the window finish
Flat roof window type F

with the existing roof design. A wide range of colours in accordance with the RAL Classic Palette.









GLAZING UNITS
The type F is equipped with an energy-efficient, triple DU6 glazing unit. The external glass 6mm thick is toughened while the internal glass is laminated and anti-burglary P2A class. Should the pane crack, shards of glass do not pose a danger but remain on the laminate film. Heat transmittance co-efficient for the whole window is U=0.70 W/m2K (to EN 14351-1). The window is also available to order with a quadruple U8 glazing unit. Heat transmittance co-efficient for the whole D_F DU8 window is U=0.64 W/m2K (to EN 14351-1). Such excellent parameters make the window suitable for use in energy-efficient and passive buildings.



ACCESSORIES
The structure of the window enables installation of internal as well as external accessories. The external awning blind protects against room overheating while internal accessories protect from intensive sun light and provide a decorative element.



INSTALLATION RANGE
The type F flat roof window is suitable for roof pitches between 2 and 15 degrees.



AVAILABLE SIZES
The wide range of sizes available has been matched to standard skylights, enabling the quick and easy replacement of an existing skylight for a new window.

  • DXF DU6


    non-opening
    • 0.70 W/m²K window U-value 0.5 W/m²K glazing U-value 6H -18-4H -20-33.2T glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated (safe)
  • DMF DU6


    manually opened with ZSD rod
    • 0.70 W/m²K window U-value 0.5 W/m²K glazing U-value 6H -18-4H -20-33.2T glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated (safe)
  • DEF DU6


    electrically opened with wireless Z-Wave system
    • 0.70 W/m²K window U-value 0.5 W/m²K glazing U-value 6H-18-4HT-18-44.2T glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated (safe)
  • DEF DU8


    electrically opened with wireless Z-Wave system
    • 0,64 W/m²K window U-value 0,4 W/m²K glazing U-value 6H-10-4HT-10-4HT-12-44.2T glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated (safe)
