Flashing for Tiled Coverings EZN-A, EZV-A, EZV-A XDP

Description

Flashing for Tiled Coverings EZN-A, EZV-A, EZV-A XDPEZ Flashing is ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting. It is a universal flashing which can be applied not only to corrugated coverings but also to all roof coverings with a profile depth of up to 45mm. As standard EZ flashing is applied to individual windows in the slope of the roof.


It may also be used as flashing for windows used in combinations or groups:

  • for “N” and “V” depths in horizontal, vertical, and block groups,
  • for depth “J” in horizontal combination only.

This flashing is available in three different types allowing windows to be installed at three different depths in the roof construction N(+3), V (0) and J (–3cm). The standard installation of windows with the application of flashing EZ is V – version EZV-A.




flashing EZV-A XDPCan be used in roofs with pitches:

  • from 15° to 90° for depths N and V,
  • from 20° to 90° for depth J.

The flashing EZV-A XDP consists of standard EZV-A (1) flashing and insulation set XDP. XDP consists of air-permeable collar (2) and insulation (3) which is made of specially impregnated sheep wool.







Constituents of the Flashing

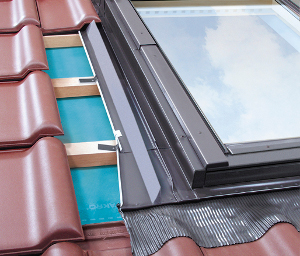

The flashing is made up of four basic elements (lower element, two sides elements and top element). The lower element is finished with an elastic apron which has a plastic mat glued to the underside thus allowing the flashing to adhere to the roof covering for a neat fit. The flashing side-sealing channels factory equipped with sponge seals provide protection against wind blown dust, leaves, rain and snow. It also incorporates a gutter which allows condensation to drain away from the window.

Vertical and horizontal cross-section with EZV- A flashing elements



Vertical and horizontal cross-section with EZV- A flashing elements

1 — top part of the flashing
2 — bottom part of the flashing with an apron 165 mm in length
3 — side parts and sponge seals
4 — gutter
5 — aluminium strips to fix the flashing
6 — tile supporting profile
