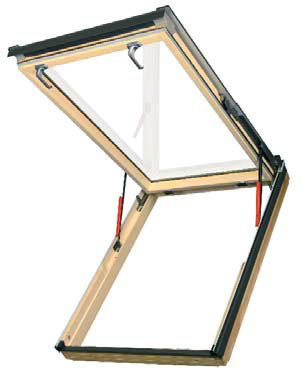

  • The FEP L3 panoramic window is of top hung and pivot design.
  • There are two opening systems: outward with 40° opening angle, when blockade released changes to 68°; pivot, enables the sash to be rotated through 180°, used e.g. for cleaning the outer pane.
  • The large sash opening angle allows for an easy approach to the opened window and provides for a wide view to the outside.

  • The large window dimensions and ability to lift the sash to an angle of 68° provide an access to the roof for maintenance, repair or escape in case of emergency.
  • Manufactured in pine, vacuum impregnated, coated with two coats of acrylic lacquer.
  • System of reinforced window structure topSafe.
  • Handles positioned on the lower part of the sash enable the window to be opened slightly, whilst a top catches serve to rotate the sash and to change the method of opening.
  • Suitable for roofs with pitches between 15-55°.
Topsafe® system of burglary protection as standardTopsafe® system of burglary protection as standard
  • FEP L3


    • Glazing unit L3L3 - Safety double glazed unit. Toughened outer pane. Laminated inner pane. U value of window 1.3
    • Highest quality pine woodHigh quality close-grain vacuum - impregnated redwood pine guaranteed to be knot-free
    • Wood painted twice with ecological acrylic lacquerdouble coated wood with ecological acrylic lacquer in natural colour
    • Suitable for pitches from 15-55Suitable for roofs with pitches between 15-55°
    FEP L3
    • 1.4 W/m²K window U-value 1.1 W/m²K glazing U-value 35 dB acoustic insulation Rw 4HS-14-33.1T glazing unit argon inert gas filled panes + external glass toughened + external glass with easy maintenance layer + internal glass laminated (safe) twice varnishing three seals + multi-point opening Elegant handle
