L- shape combination window

L- shaped combination window

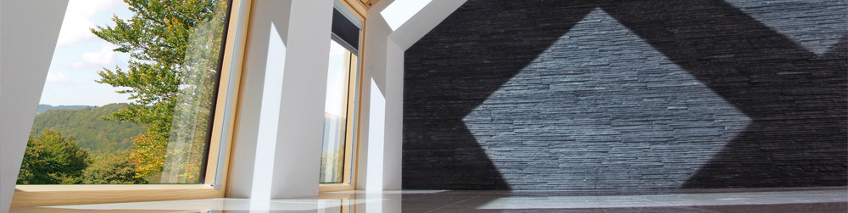

  • L- shape combination windowThe L-shaped windows are designed to be installed where the roof meets a vertical wall.
  • These windows serve to extend the roof window into the wall. This results in the amount of light entering the room and the field of view being greatly increased.
  • The L-shaped combination windows can be combined with roof windows of any design.
  • Standard equipped with safety glazing unit L3 or P5.
  • Windows equipped with multi-point locking fittings.
  • The highest quality pine wood, glued in layers, vacuum impregnated.
  • Double coated wood with ecological acrylic lacquer.
  • A wide range of accessories.
  • The roof window installation range joined with L-shaped combination window is 15 to 55 degrees.
  • BDR, BDL - tilt and turn opening system


    • Glazing unit L3Glazing unit – L3 – Safe or P5
    • Wood painted twice with ecological acrylic lacquerDouble coated wood with ecological acrylic lacquer.
    • Flashing EHV-AT ThermoA wide range of accessories.
    • Suitable for pitches from 15-55Installation range 15-50 °.
    • 1,3 W/m²K window U-value 1,1 W/m²K glazing U-value 37 dB acoustic insulation Rw 4HS-14-33.1T glazing unit argon inert gas filled panes + external glass toughened + external glass with easy maintenance layer + internal glass laminated (safe) - internal glass anti-burglary twice varnishing two seals + handle
    • 0,88 W/m²K window U-value 0,5 W/m²K glazing U-value 38dB acoustic insulation Rw 4HS-10-4HT-8-33.2T glazing unit krypton inert gas filled panes + external glass toughened + external glass with easy maintenance layer + internal glass laminated (safe) + internal glass anti-burglary twice varnishing two seals + handle
  • BVP - tilt opening


    • Glazing unit L3Glazing unit – L3 – Safe or P5
    • Wood painted twice with ecological acrylic lacquerDouble coated wood with ecological acrylic lacquer.
    • Flashing EHV-AT ThermoA wide range of accessories.
    • Suitable for pitches from 15-55Installation range 15-50 °.
    • 1.3 W/m²K window U-value 1.1 W/m²K glazing U-value 37 dB acoustic insulation Rw 4HS-14-33.1T glazing unit argon inert gas filled panes + external glass toughened + external glass with easy maintenance layer + internal glass laminated (safe) - internal glass anti-burglary twice varnishing two seals + handle
    • 0.88 W/m²K window U-value 0.5 W/m²K glazing U-value 38dB acoustic insulation Rw 4HS-10-4HT-8-33.2T glazing unit krypton inert gas filled panes + external glass toughened + external glass with easy maintenance layer + internal glass laminated (safe) + internal glass anti-burglary twice varnishing two seals + handle



  • BXP - non-opening


    • Glazing unit L3Glazing unit – L3 – Safe or P5
    • Wood painted twice with ecological acrylic lacquerDouble coated wood with ecological acrylic lacquer.
    • Flashing EHV-AT ThermoA wide range of accessories.
    • Suitable for pitches from 15-55Installation range 15-50 °.
    • 1.3 W/m²K window U-value 1.1 W/m²K glazing U-value 37 dB acoustic insulation Rw 4HS-14-33.1T glazing unit argon inert gas filled panes + external glass toughened + external glass with easy maintenance layer + internal glass laminated (safe) - internal glass anti-burglary twice varnishing two seals - handle
    • 0.88 W/m²K window U-value 0.5 W/m²K glazing U-value 38 dB acoustic insulation Rw 4HS-10-4HT-8-33.2T glazing unit krypton inert gas filled panes + external glass toughened + external glass with easy maintenance layer + internal glass laminated (safe) + internal glass anti-burglary twice varnishing two seals - handle
