FAKRO\'s Flat roof access doors

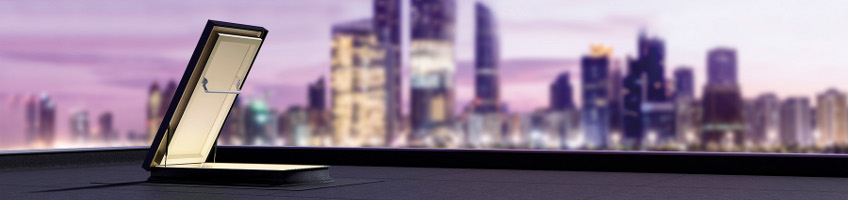

Flat roof access door

The DRL roof access door is an innovative product providing safe and comfortable access to the flat roof. Its structural durability and range of sizes provide the perfect combination with a loft ladder.

Characteristics

  • Fully assembled product
  • The frame is constructed of multi-chamber PVC profiles filled with insulation material
  • Insulated sash equipped with a rubber seal ensures perfect thermal insulation performance
  • The sash can be opened up to 60°. Gas springs facilitate opening and closing and the sash can be left in open position
  • Anti-slip tape on the base ensures safe access to the flat roof
  • Sizes of the roof access door are adjusted according to the size of loft ladder (loft ladders are sold separately - see Loft Ladder Catalogue)
  • Can be mounted on an additional XRD base with a height of 15cm, for installation in green and living roofs
  • Option to install an additional ZBR lock which protects against accidental closure of the sash
  • Suitable for roof pitches between 0° and 5°.
FAKRO\'s Flat roof access doors FAKRO\'s Flat roof access doors

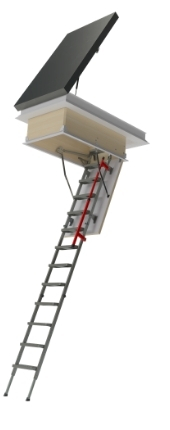

DRL LML (details to be found in loft ladder section)
  • mounted on the roof surface
  • the whole structure is insulated
  • can be installed in the opening under the DRL roof access door
  • mechanism to support unfolding and folding the ladder
  • additional tread in the box
  • wide (13cm) anti-slip treads
  • Flat roof access door DRL


    • Non-standard dimensions Anti-slip tape
    • High base XRD on D_F Can be mounted in green and living roofs
    • Sash opening 60 The sash can be opened up to 60°
    • Access DRL Fully assembled product
    • Roof slope 0-5 Suitable for roof pitches between 0° and 5°
    DRL
    • U=0,67 W/m²K window U-value
