Installation base XRD

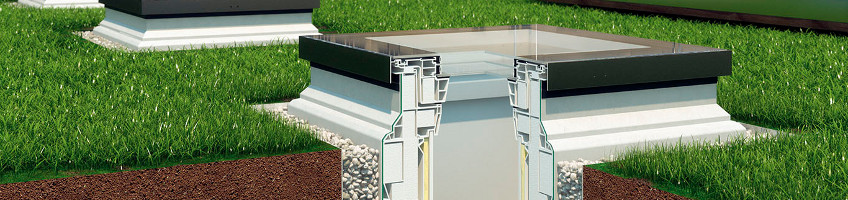

The XRD installation base is designed for the type C and type F flat roof windows – it allows to raise the window above the roof by 15cm. It reduces to a minimum time required to install the window in roofs where it is necessary to raise the window (e.g. green or gravel roofs). Design versatility of the XRD installation base allows overlapping of frames one on top of the other in order to achieve higher base for the window. Up to two frames can be overlapped. Lengthened frame element, the so-called fin allows connection of the base with water insulation of the roof. Profile of the XRD base is manufactured from the recycled material (grey colour), hence the product is eco-friendly. The profile is filled inside with insulation material (polystyrene), thus ensuring very good insulation parameters. The base is adjusted to standard sizes of flat roof windows. It is possible to manufacture non-standard size of the XRD base to match non-standard dimensions of the type F flat roof windows.

Characteristics:

  • Intended for the type F and type C flat roof windows
  • Window can be raised and installed in different roofs such as green ones. It is possible to connect up to two XRD bases
  • Wide range of sizes




Installation base XRD Installation base XRD

Lengthened frame element, the so-called fin allows connection of the base with water insulation of the roof




In case of the construction of a higher base it is necessary to cut protruding part of the fin around perimeter and overlap bases one on top of the other.
