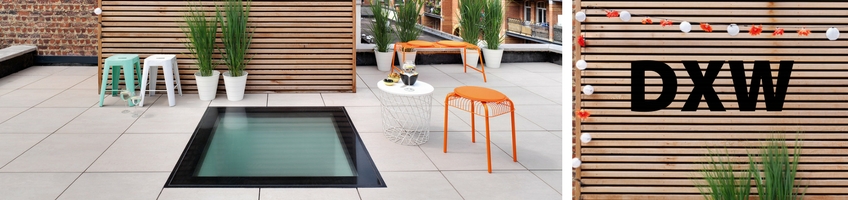

The DXW flat roof window ensures you can walk across its surface freely

The DXW flat roof window ensures you can walk across its surface freelyModern materials and changing technology in the construction industry allow to erect buildings with flat roofs.

It often happens in this type of architecture that inside the building there are rooms where it is not possible to install standard roof windows. Each room should offer a source of natural light to make the user feel comfortable. Ideal solution in such cases is installation of specially designed products for flat roofs.





The DXW flat roof window ensures you can walk across its surface freely

 DXW flat roof window which with special design featuring enhanced load capacity and applied non-slip coating ensures you can walk across its surface freely when installed in terraces or flat roofs. Thanks to the fact that the surface of the DXW window is in flush with the roof covering material, windows not only create a safe space in the terrace which can be utilized, but also do not spoil its aesthetics. It is therefore an excellent solution to be applied in the terrace or green roof that allows to achieve perfectly flat roof surface while maintaining properties of the roof window.





With reinforced design, anti-slip coating, safe glazing unit with external glass laminated, the DXW window is very safe product that allows to walk across its entire surface safely.









STRUCTURE

The DXW flat roof window ensures you can walk across its surface freelyThe DXW flat roof window ensures you can walk across its surface freely.

The frame in flat roof windows is made of multi-chamber PVC profiles partially manufactured from recycled raw material. Inner surface of the frame is white. Material from which the profiles are made features high resistance to acids and very low moisture absorption, therefore the window can be used in any room.

Profiles are filled inside with insulating material which additionally improves thermal parameters of the product. Additional profiles clamping covering materials under eaves of the frame facilitate finish of the flat roof window connection with the roof covering. Safe, double chamber glazing unit with heat transfer coefficient Ug = 0.5 m2/K is used in windows.



FUNCTIONALITY

With its specially enhanced strengthened design and non-slip coating, the window ensures you can walk across its entire surface safely. This is of great importance in case of usable terraces and roofs where the window in flush with openwork platform allows for free and safe walk across its surface and does not spoil aesthetics. This feature significantly improves usability of the roof and terrace. Optimized design of flat roof windows allows for installation of internal accessories for the type F windows. Available as standard, the DXW window includes profiles clamping the roofing felt or other covering material under eaves of the frame, which facilitate finish of the flat roof window connection with the roof covering..

The window task is to provide abundance of the natural light to buildings with flat roofs.



SAFETY

With reinforced design, anti-slip coating, safe glazing unit with external glass laminated, the DXW window is very safe product that allows to walk across its entire surface safely.



SAVINGS

Flat roof windows are designed in such a way as to minimise heat loss in the room.

Profiles are filled inside with insulating material which additionally improves thermal parameters of the product.

The DXW window is available with a double-chamber, passive glazing unit with heat transfer coefficient Ug = 0.5 m2/K.

  • DXW DW6


    non-opening
    • LUX window class 0,70 W/m²K window U-value 0,5 W/m²K glazing U-value 888.44(1xESG, 2xTVG)-Tg16Ar-4HT-Tg18Ar-66.2T glazing unit argon inert gas filled panes + external glass toughened
