Metal folding section loft ladders

Fire-resistant loft ladders and L-Shaped combination door

  • LMF


    • Telescopic stile endstelescopic stile ends
    • Fire - resistant hatchfire-resistant hatch
    • Finishing lining slatsfinishing lining slats
    • Two peripheral sealsperipheral seal
    • Metal treadnon-slip treads
    • Ladder unloading mechanismladder unloading mechanism, built in handrail
    • System of quick installation in the ceilingsystem of quick installation in the ceiling
    • Possibility of installing additional accessoriespossibility of installing additional accessories
    • Fully assembledfully assembled and ready for quick installation in the ceiling
    • 3 year warranty3 year warranty

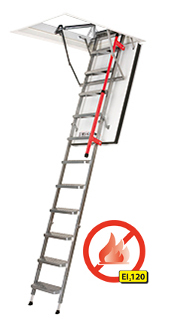

    LMF
    • 200 kg maximum loading U=0.79 W/m²K * loft ladder hatch U-value 8 cm insulation thickness 8.2 cm hatch thickness EN 14975 norm requirements
    The LMF 3-section loft ladder complies with fire-resistant standards, whilst providing safe and comfortable access to the loft spaces.
    The LMF ladder prevents smoke and fire from spreading to the upper or lower fire free storey for 120 minutes. (EI2= 120 min, classification according to EN 13501-2).
  • LWF


    • Stile endsstile ends
    • Fire - resistant hatchfire- resistant hatch inner hatch in white, external in Cherry
    • Peripheral sealperipheral seal
    • Treads protruding from stringsnon-slip treads protruding from strings
    • Handrailhandrail
    • Possibility of installing additional accessoriespossibility of installing additional accessories
    • 3 year warranty3 year warranty

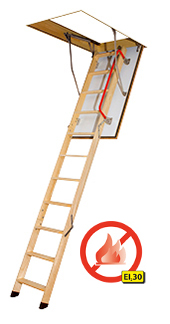

    LWF
    • 160 kg maximum loading U=0.9 W/m²K loft ladder hatch U-value 3 cm insulation thickness 4.2 cm hatch thickness EN 14975 norm requirements
    The LWF folding 3 section fire-resistant loft ladder with its high fire-resistant properties, EI2= 30 min (according to EN 13501-2) is
    perfect for installations which are subject to stipulations as specified in building regulations.
  • LWF 45


    • Stile endsstile ends
    • Fire - resistant hatchfire- resistant hatch inner hatch
    • Three peripheral sealsthree peripheral seal
    • Treads set flush with ladder stringsnon-slip threads set flush with ladders strings
    • Handrailhandrail
    • Possibility of installing additional accessoriespossibility of installing additional accessories
    • 3 year warranty3 year warranty

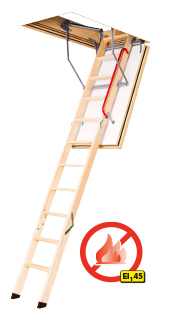

    LWF 45
    • 160 kg maximum loading U=0.6 W/m²K loft ladder hatch U-value 8cm insulation thickness 7.4cm hatch thickness EN 14975 norm requirements
    The LWF folding 3 section fire-resistant loft ladder with its high fire-resistant properties, (EI145/ EI245). (according to EN 13501-2) is perfect for installations which are subject to stipulations as specified in building regulations.
  • LSF


    • Fire - resistant hatchfire-resistant hatch
    • Finishing lining slatsfinishing lining slats
    • Metal treadnon-slip treads
    • Additional treadpossibility of adding or detaching segments
    • System of quick installation in the ceilingsystem of quick installation in the ceiling
    • Possibility of installing additional accessoriespossibility of installing additionl accessories
    • Fully assembledsystem of adopting the ladder length to the ceiling height
    • 3 year warranty3 year warranty

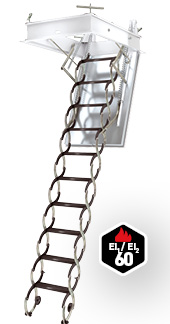

    LSF
    • 200 kg maximum loading - loft ladder hatch U-value 3 cm insulation thickness 5.4 cm hatch thickness EN 14975 norm requirements
    The LSF fire-resistant loft ladder acts as a smoke block inside the building preventing the smoke from passing to a smoke free storey. The loft ladder fireresistance is EI₂= 60 minutes (classification according to EN 13501-2).
  • DWF


    • Fully assembled and ready for quick installationready for quick installation
    • Fire - resistant hatchFire classification as per EN 13501:2 - EI145
    • 3 year warranty3 year warranty

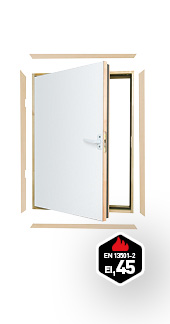

    DWF
    • U=0.64 W/m²K loft ladder hatch U-value 6 cm insulation thickness
    The DWF fire-resistant L-shaped combination doors are intended primarily for installation in vertical walls. These doors ensure access to non-habitable rooms located behind vertical wall as well as protect for 45 minutes against the spread of fire (classification as per EN13501 – EI145). The DWF L-shaped combination doors are universal, hence they can be installed with left as well as right direction of opening. Sash with a thickness of 6.6.cm made of pinewood veneered on both sides with HDF board in white filled with mineral
    wool
