Flashings

Block Combination System

Description

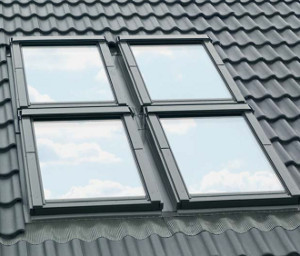

Modułowy system zespoleńCombination flashing are ready made flashing systems for joining windows in groups: horizontally, vertically and in a block. The distance between windows joined horizontally and vertically is normally 10cm. If external shutters are installed on windows installed vertically, a gap of at least 20cm is required. The FAKRO combination system enables the installation of all types of windows, top hung and pivot windows as well as centre pivot. There are seven modules in the FAKRO combination system, to cater for any layout you may require. The “Module” is a single and properly marked element of the flashing and assigned to its specific place in combination.

Examples of Combinations



Single flashing Horizontal combination
Examples of Combinations Zespolenie poziome B2/1

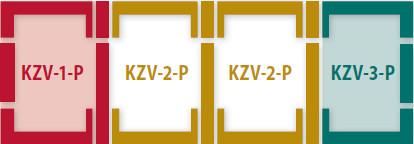

Horizontal combination

Zespolenie poziome B4/1



Vertical combination Block combination
Examples of Combinations Zespolenie blokowe B2/2

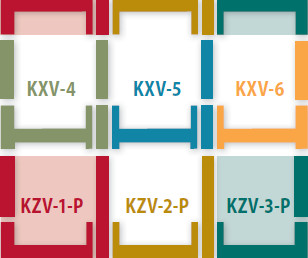

Block combination

Zespolenie blokowe B3/2

Instructions
